DIGITAL GAUSS METER (Table Top Type)

DIGITAL GAUSS METER MODEL S - 20

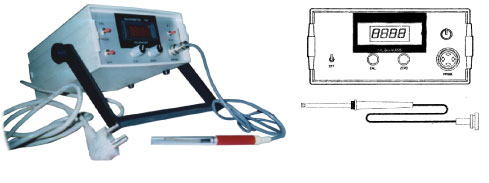

STR Model S-20 is a low cost digital Table Top instrument for measurement of d. c. magnetic fields is using Hall Probes. It has two ranges 20 K Gauss. A built in calibration facility ensures quick check of calibration. All the controls are mounted on the front panel and are clearly designed. An attractive plastic cabinet with carrying cum tilt bracket takes make the instrument light in weight and portable. LED display gives direct reading with 1 Gauss resolution on the 2k range and 10 Gauss resolution on the 20 K range. The unit is supplied with a Calibrated transverse Hall Probe of 50 mmx 1.5mm with the actual sensing area of 1 sq.mm from the tip.


CIRCUITRY

The control unit consists of a constant generator, an amplifier and seven segment LED display. A constant current is made to pass through the Hall probe, which when place in a magnetic field produces a voltage proportional to the magnetic filed. This voltage is amplifier circuit and output is read on a digital panel meter calibrated in kilo gauss.


SPECIFICATIONS:
Range Full Scale: 0 to 2 and 0 to 20 Kilo Gauss
Accuracy: ±2 % full scale + one digit of the 20 K Gauss range.
Resolution: 0.1 % of full scale.
: 31/2 Digit LED DPM.
Power: 240 V a. c. 50 Hz, 10 Watts
: 210 mm x 95 mm x 225mm and 3 kgs approx

APPLICATIONS:

General purpose instrument for accurate flux density measurement on magnetic and electromagnetic components such as relays, dc motors, magnets, loudspeakers, etc. Very useful for on line production testing.


OTHER MODELS:

Battery operated Gaussmeter, A.C. field Gaussmeter, Low field Gaussmeter.
