Magnetic Equipments- Magnetic Sheet Fanners


MAGNETIC SHEET FANNERS

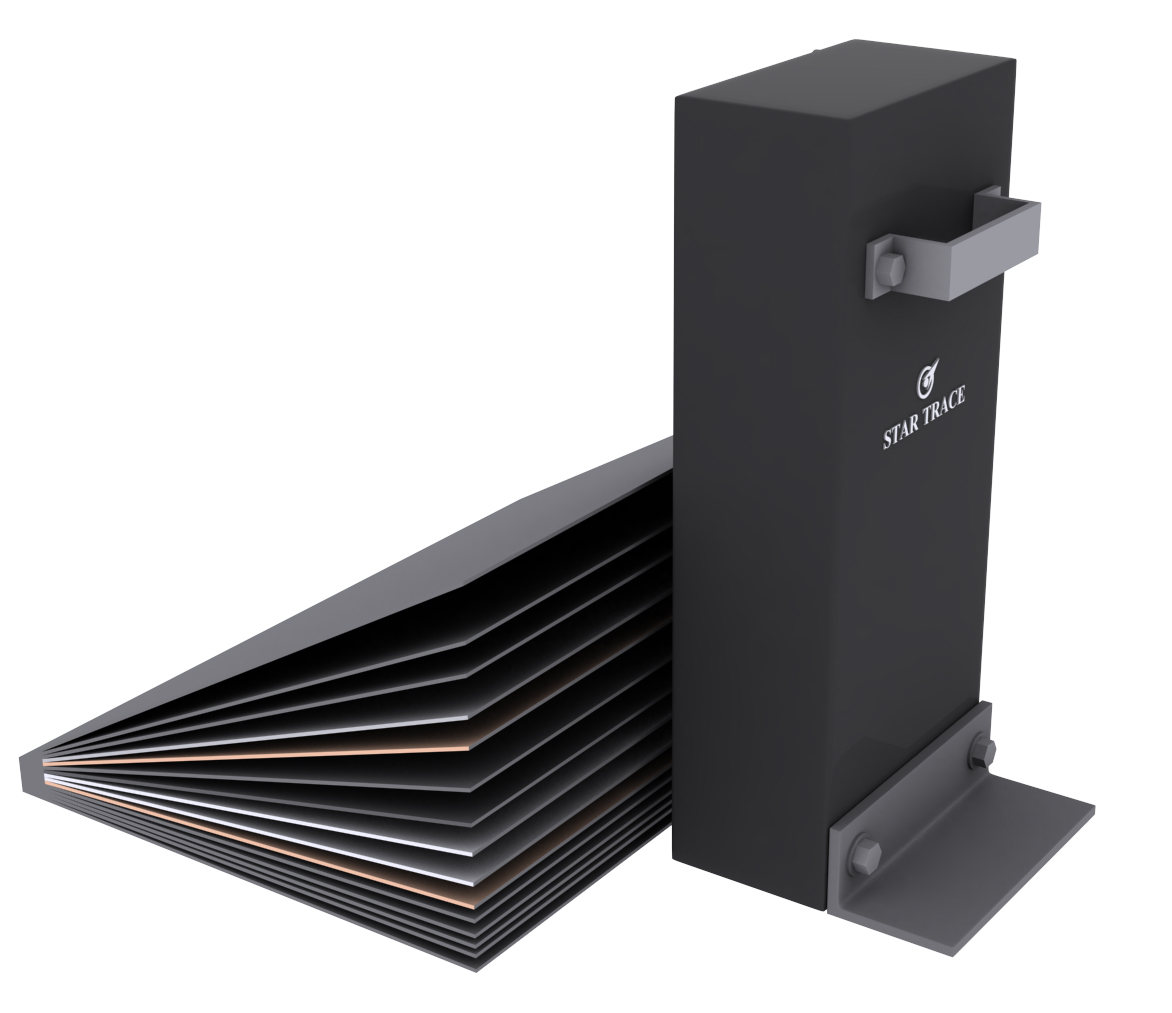

Star Trace Magnetic Sheet Separator are designed to reduce costs and increase safety when destacking steel sheet stock. A constant Powerful magnetic field automatically separates the sheets. As fast as the top sheet is removed, the next sheet instantly moves up. The operator quickly and safely handles one sheet at a time -no-longer is prying of sticky, oily, pre-finished or polished sheets necessary. Also eliminated are die damaging due to double sheets Magnetic Sheet Separators will handle steel sheets of almost any length, width or shape. For Maximum effectiveness, locate the separator at a corner(s) of large sheets and in the center of the width or length on smaller sheets. Separator placed opposite each other on small sheets will actually float the sheets. The sheets near the top of the stack separator instantly from a 3/4" to 11/2" gap, depending on sheet thickness and size. As soon as the sheets are removed from the separator, they are no longer magnetized.


HEAVY DUTY
EXTRA HEAVY DUTY
PART NO
A
B
C
PART NO
A
B
C
*STR09
9
8-5/16
3
*STR09
9
11-5/16
3
*STR12
12
8-5/16
3
*STR12
12
11-5/16
3
*STR15
15
8-5/16
3
*STR15
15
11-5/16
3
*STR18
18
8-5/16
3
*STR18
18
11-5/16
3
*STR21
21
8-5/16
3
*STR21
21
11-5/16
3
*STR24
24
8-5/16
3
*STR24
24
11-5/16
3
*STR27
27
8-5/16
3
*STR27
27
11-5/16
3
*STR30
30
8-5/16
3
*STR30
30
11-5/16
3

EXTRA HEAVY DUTY
LIGHT DUTY
MEDIUM DUTY
Part No
A
B
C
Part No
A
B
C
Part No
A
B
C
STR05
5
3-3/16
15/16
STR05
5
4-3/16
1-15/16
STR09
9
6-3/16
2-11/16
STR07
7
3-3/16
15/16
STR07
7
4-3/16
1-15/16
STR12
12
6-3/16
2-11/16
STR09
9
3-3/16
15/16
STR09
9
4-3/16
1-15/16
STR15
15
6-3/16
2-11/16
STR12
12
3-3/16
15/16
STR12
12
4-3/16
1-15/16
STR18
18
6-3/16
2-11/16
STR015
15
3-3/16
15/16
STR015
15
4-3/16
1-15/16
STR21
21
6-3/16
2-11/16

Benefits:

  • Permanent magnetized
  • Convenient cary handle
  • Durable welded construction
  • Non-corrosive enclosure


Options:

  • Custom sizes
  • Mounting options
  • Extra power models
